Solicitud

The cables are designed for XDSL transmission system. The cables are characterized by guaranteed data speeds up to 40MHz.

Normas

• ER.f5.113







Construcción

Conductores
Solid annealed bare copper sized 0.5mm as per ASTM B-3/IEC 60228 Class1

Aislamiento
Solid polyethylene as per ASTM D 1248/IEC 60708

Pares trenzados
Insulated conductors are twisted into pairs with varying lays to minimize crosstalk

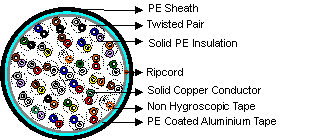

Cable Troncal Asamblea
The pairs are cabled together in layers of 12, 13 & 25 pair unit to form the cable core. Units are identified by colour coded binders.

Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap

Pantalla
An aluminium polyster foil is applied longitudinally with an overlap

Vaina
Black low density polyethylene as per BS 6234/IEC 60708

Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal

Propiedades eléctricas

Conductor Diameter	mm	0.5
Maximum Conductor Resistance @20°C	Ω/km	91
Minimum Insulation Resistance @500V DC	MΩ.km	20000
Maximum Resistance Unbalance	%	2
Average Mutual Capacitance	nF/km	52
Maximum Capacitance Unbalance @1KHz pair-to-pair	pF/500m	45
Maximum Capacitance Unbalance @1KHz pair-to-ground	pF/500m	400
Impedance @0.3 – 1MHz	Ω	100+/- 20
Impedance @1 – 40MHz	Ω	100+/- 15
Maximum Average Attenuation @0.1MHz	dB/km	0.81
Maximum Average Attenuation @0.3MHz	dB/km	1.15
Maximum Average Attenuation @0.6MHz	dB/km	1.65
Maximum Average Attenuation @1MHz	dB/km	2.1
Maximum Average Attenuation @4MHz	dB/km	4.3
Maximum Average Attenuation @10MHz	dB/km	6.6
Maximum Average Attenuation @16MHz	dB/km	8.2
Maximum Average Attenuation @20MHz	dB/km	9.2
Maximum Average Attenuation @31.25MHz	dB/km	11.8
Maximum Average Attenuation @40MHz	dB/km	13.9
Minimum Return Loss @1-20MHz	dB/100m	23
Minimum Return Loss @20-40MHz	dB/km	23-10log (f/20)
Minimum ELFEXT pair-to-pair @0.16MHz	dB	69
Minimum ELFEXT pair-to-pair @1MHz	dB	55
Minimum ELFEXT pair-to-pair @20MHz	dB	29
Minimum ELFEXT pair-to-pair @40MHz	dB	23
Minimum NEXT pair-to-pair @0.16MHz	dB	68
Minimum NEXT pair-to-pair @1MHz	dB	59
Minimum NEXT pair-to-pair @20MHz	dB	39
Minimum NEXT pair-to-pair @40MHz	dB	35
Dielectric Strength	dB
Conductor to Conductor 3secs	V DC	3000
Conductor to Screen 3secs	V DC	5000

Propiedades mecánicas y térmicas

Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter

Código de colores

Standard colour code is per ANSI/ICEA S-80-576 given in Colour Code Chart.

Dimensiones y peso

Código de cable	Número de paress/Quads	Espesor nominal de aislamientomm	Espesor nominal de la vaina mm	Diámetro nominal global mm	Peso nominal kg/km
TP113-2Y(St)Y-26P05-XDSL	26	0.2	0.9	18.5	265
TP113-2Y(St)Y-51P05-XDSL	51	0.2	1.0	24.2	460
TP113-2Y(St)Y-101P05-XDSL	101	0.2	1.1	31.5	790
TP113-2Y(St)Y-202P05-XDSL	202	0.2	1.2	41.5	1415
